Google Cloud federation with Microsoft Entra ID - Part 2

Estimated reading time: 4 minutes

September 14, 2024 Gerard Samuel

In my previous article on Google Cloud federation and account provisioning with Microsoft Entra ID, I showed how to get started to configure it. This article constitutes the second part, utilizing SAML authentication to complete the solution. Once you complete the steps here, you will have a secure means of logging into Google Cloud with your Entra ID account.

To complete this process, you will need to have completed the first portion as documented here.

Create a Google Admin SAML profile

In Google Admin, go to Security -> Authentication -> SSO with third-party

• Click “Add SAML Profile”



• Give it a name and click Save. You will fill in the other fields later

• The page flow will generate SP (Service Provider) URLs for you. These will be needed when creating an Entra ID SSO application

Create a Microsoft Entra ID SSO application

• In Microsoft Entra ID, create another “Google Cloud/G Suite Connector by Microsoft” application

• Name it “Google Cloud SSO”



• After its creation, go to Manage -> Properties

• Ensure that both options are set to “Yes” for “Enabled for users to sign-in” and “Assignment required”

• Click Save

• Go to Manage -> Users and groups

• Click Add user/group to assign a user or group

• Go to Manage -> Single sign-on

• Click the “SAML” card



• In the resulting page, click Edit on step 1



• In the “Identifier (Entity ID)” section, click the “Add Identifier” link

• Paste the “Entity ID” URL from the SSO Profile in Google Admin here and click the Default checkbox

• Remove any other entries here resulting with just the single entry



• In the “Reply URL (Assertion Consumer Service URL)” section, click the “Add reply URL” link

• Paste the “ACS URL” from the SSO Profile in Google Admin here

• For the Sign on URL, paste the following, replacing PRIMARY_DOMAIN with your FQDN: https://www.google.com/a/PRIMARY_DOMAIN/ServiceLogin?continue=https://console.cloud.google.com/

• Click Save

• Close the “Basic SAML Configuration” pane

• In step 2, click Edit

• Since I am using the Universal Principal Name (UPN) as the identifier, please remove all additional claims and retain only the required claim configured for UPN



• Make a note of the Base64 token signing certificate in step 3

• Make a note of the following URLs in step 4 “Login URL” “Microsoft Entra Identifier”

Complete the Google Admin SSO profile

• In the IDP details section from step 4 in the Microsoft Entra ID SSO application, paste the “Microsoft Entra Identifier” URL into the IDP entity ID field

• Also paste in “Login URL” URL into the “Sign-in page URL” field

• Paste the following into the “Sign-out page URL” field: https://login.microsoftonline.com/common/wsfederation?wa=wsignout1.0

• PPaste the following into the “Change password URL” field:
  https://account.activedirectory.windowsazure.com/changepassword.aspx

• Upload the Base64 token signing certificate in step 3 in the Microsoft Entra ID SSO application to the Verification certificate

• Click Save

• The result should look similar to this:



Assigning the SSO profile

• In Google Admin, go to Security -> Authentication -> SSO with third-party IdP

• In the “Manage SSO profile assignments” section, click the “Get Started” link

• In the left pane, select the “Users” OU

• In the right pane, select the “Another SSO profile” radio button

• In the SSO profile dropdown menu, choose the SSO profile that you created earlier

• Your result should look similar to this:



• Click Override

• Click on the Automation OU

• Choose None for SSO profile assignment

• Click Override

Testing single-sign on

• With an incognito browser window, navigate to https://console.cloud.google.com

• Enter the username of an account that the Microsoft Entra ID automation has provisioned

• You should get redirected to log into Microsoft Entra ID

• If your credentials are correct, you will be redirected back to Google Cloud console

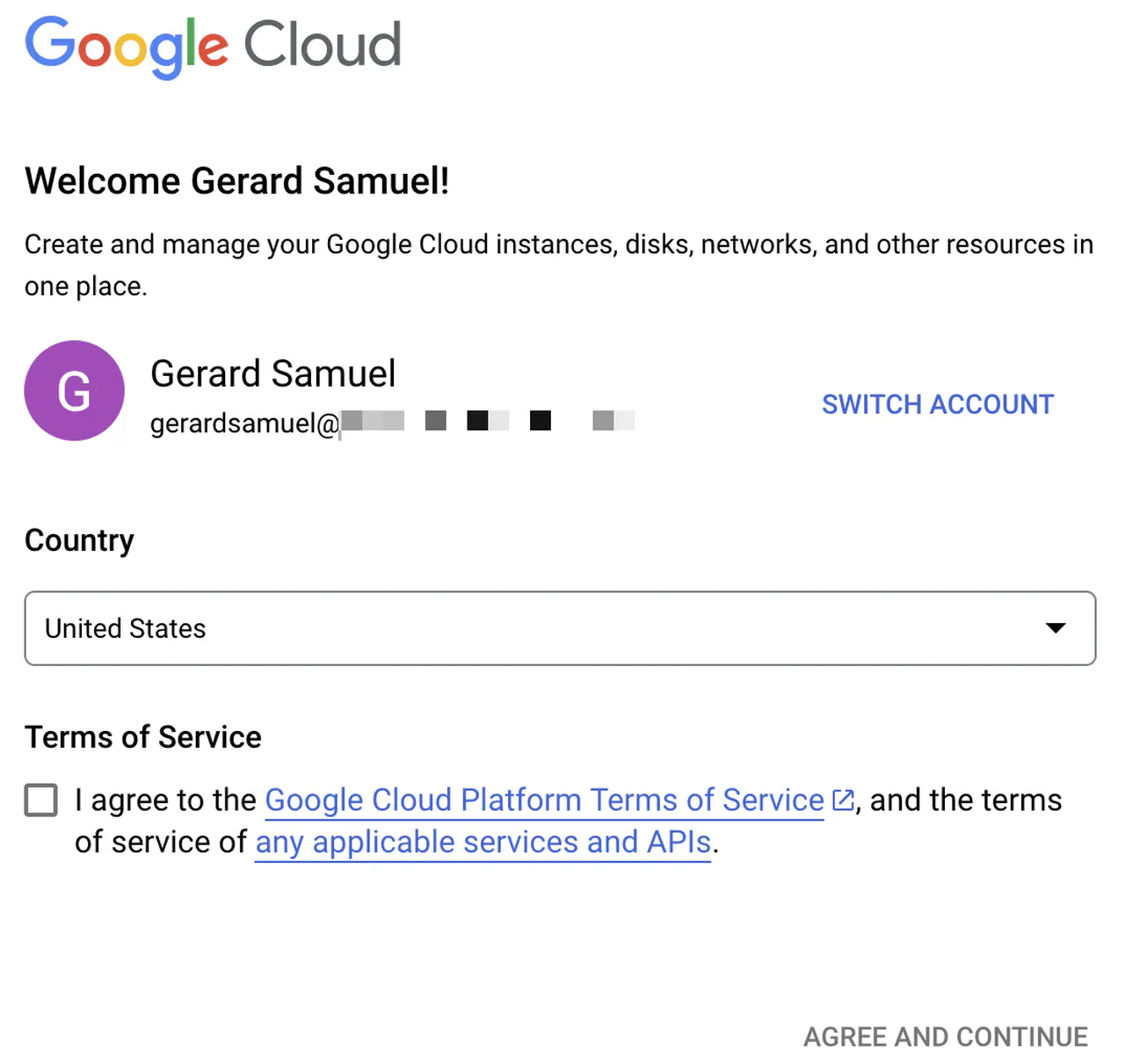

• Agree to the terms of service and click “Agree and continue”



Conclusion

And there you have it. If all goes well, this overall solution gives you the following:

• The ability to use one account for both Microsoft/Azure and Google ecosystems
• The basic groundwork to expand into Entra ID’s conditional access
• The foundation to manage access to Google Cloud resources

Have any questions? Feel free to reach out to me.

Thanks! 👋
